제품 상세 정보:
결제 및 배송 조건:
|
| 애플리케이션: | 채광하는 건축 | 상품 이름: | 용광로 스킵 호이스트 |
|---|---|---|---|
| 차원 (mm): | 다른 모형 | 평가된 긴장: | 20KN |
| 최대 긴장: | 22KN | 환원제 비율: | 54.9 |
| 드는 수용량: | 20KN | 드는 속도: | 22m/min |
| 중량: | 550KG | 전압: | 220-480V |
| 강조하다: | 20kn 스킵 호이스트 시스템,용광로 스킵 호이스트 System,20kn 승강기와 스킵 호이스트 |
||

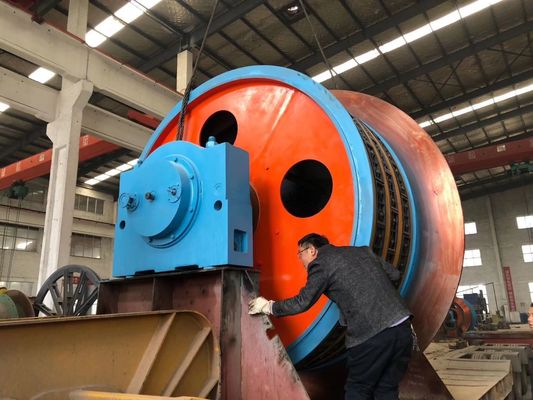

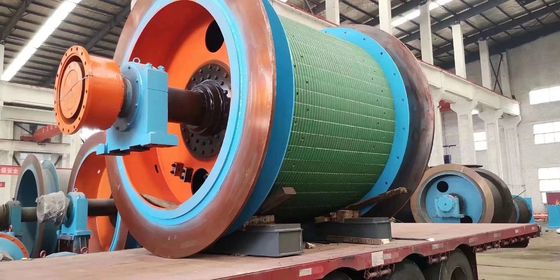

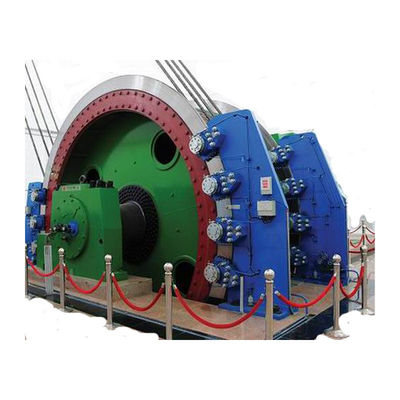

JK fast speed wire rope electric blast furnace skip hoist material lifting
The blast furnace skip hoist is protected against overspeed on the motor side by a mechanical overspeed switch with integrated speed increasing gear. On the drum side two absolute encoders mounted on a distribution gearbox supply position signals. As part of a modernization project outdated sensors need to be replaced with up-to-date systems. Objectives include simplifi- cation of mechanical attachments, elimination of inaccuracies as well as all-round better control response. In addition, susceptibility to EM disturbances is to be reduced and, as a consequence, increase the robustness and availability of the installation.
JK fast speed wire rope electric blast furnace skip hoist mainly is used for material lifting and tract on the weight droops during construction.It also used for crane as main hoist ; It is the special winch of and gantry frame and lifting trolley.It is suitable for construction mine area lifting factory.
| Model | JK0.5 | JK1 | JK1.6 | JK2 |
| Dimension (mm) | 800*650*340 | 850*820*400 | 1000*900*520 | 1200*1000*530 |
| Rated Tension | 5kn | 10kn | 16kn | 20kn |
| Max Tension | 5.5kn | 11kn | 17kn | 22kn |
| Reducer Ratio | 36.6 | 40.59 | 54.38 | 54.9 |
| Lifting Capacity | 5kn | 10kn | 16kn | 20 |
| Lifting Speed | 22 m/min | 22m/min | 22m/min | 22m/min |
| Weight | 160kg | 245kg | 350kg | 550kg |
| Model | JK3.2 | JK5 | JK8 | JK10 |
| Rated Speed | 25/30m/min | 25/30m/min | 25m/min | 30m/min |
| Rope Length | 290m | 300m | 160m | 300 |
| Dimension (mm) | 1325*1335*840 | 2250*2500*1300 | 1533*1985*1045 | 2250*2500*1300 |
| Weight (kg) | 1011 | 2264 | 3000 | 5100 |
