| 키워드: | 정밀한 쇄석기 | 상품 이름: | 수직 복잡한 분쇄기 |
|---|---|---|---|
| 전송 크기 (밀리미터): | ≤220 | 방전 크기 (밀리미터): | ≤3,70-90% |
| 주축 (r/min)의 회전 속도: | 880~1350 | 능력 t/h: | 8-120 |
| (kw)를 강화하세요: | 45-200 | 외형치수 (밀리미터): | 4270*2610*2180 |
| 용법: | 정밀 분쇄, 조마광 | 특징: | 높은 능률 |
| 강조하다: | 1350R/Min 돌 파쇄기 기계,PFL 돌 파쇄기 Machine,1350R/Min 수직 복잡한 분쇄기 |
||
advanced technology high efficient PFL Vertical Complex Crusher

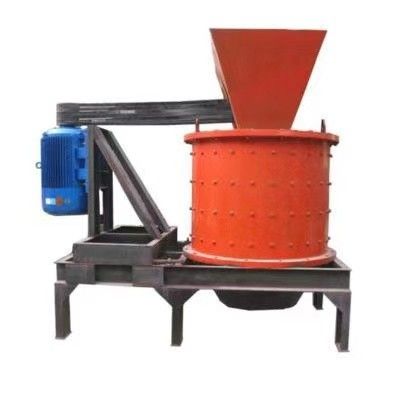

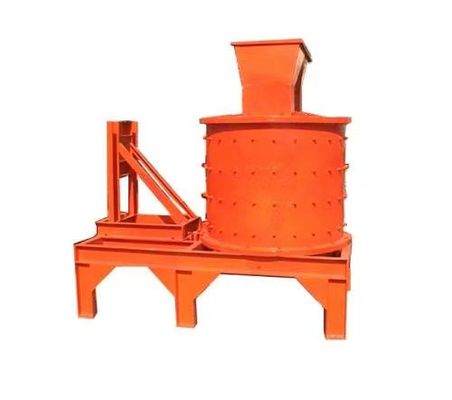

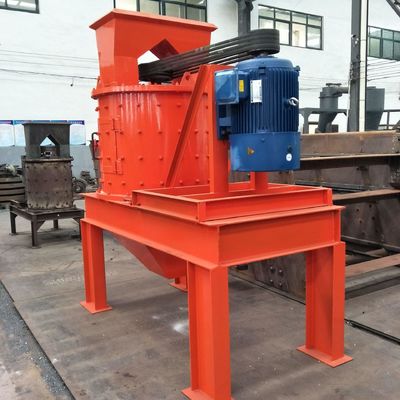

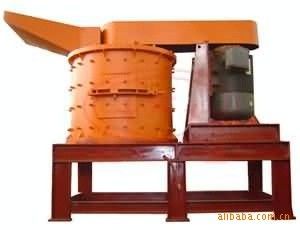

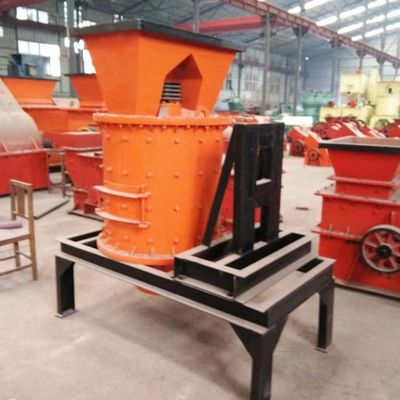

PFL Vertical Complex Crusher
Product Description:
PFL series vertical impact crusher is developed by our company which combined with domestic and overseas advanced technology, it is optimized to be new type fine crushing, coarse grinding crusher. The machine has features such as simple structure, large ratio of crushing, low energy consumption, stable rotation, easy operation and maintenance etc. among them, high efficient vertical impact crusher obtained the national patent . The series product is mainly used in raw material and agglomerate material crushing of cement factory. It is the ideal equipment for updating technology and cement product line. It is also applied in other medium hardness stones such as medium hardness iron ore, sandstone, gypsum, blast furnace slag, gangue, lump coal, metallurgy solvent material etc.
Performance Parameter:
| Specification |
Feed Size (mm) |
Discharge Size (mm) |
Rotating Speed of Main Shaft (r/min) |
Capacity (t/h) |
Power (kw) |
Outline Dimension (mm) |
| PFL-750Ⅲ | ≤100 | ≤3,70-90% | 880~1350 | 8~20 | 45 | 2370×1110×1300 |
| PFL-1000Ⅲ | ≤120 | ≤3,70-90% | 650~980 | 15~30 | 55 | 2680×1520×1420 |
| PFL-1250Ⅲ | ≤150 | ≤3,70-90% | 510~770 | 35~45 | 90 | 3240×1690×1660 |
| PFL-1500Ⅲ (ⅢX) | ≤180 | ≤3,70-90% | 430~640 | 50~70 | 132 |
3530×2050×2030 (3392×2200×2180) |
| PFL-1750Ⅲ (ⅢX) | ≤200 | ≤3,70-90% | 420~540 | 70~100 | 160 |
3710×2360×2390 (3720×2360×2280) |
| PFL-2000Ⅲ | ≤220 | ≤3,70-90% | 360~500 | 90~120 | 200 | 4270×2610×2180 |
