제품 상세 정보:
결제 및 배송 조건:
|
| 용법: | 이차적이고 정밀 분쇄 | 기능: | 물질을 충돌시키는 고속 회전 망치 |
|---|---|---|---|
| 작업 회전자 직경 / 길이(MM): | Ф1600/1800 | 회전자 속도 (r/min): | 1000 |
| 주입구 사이즈 (밀리미터): | 145×270 | 맥스. 사이즈(MM)를 공급하기: | 50-350 |
| 방전 크기 (밀리미터): | 3-20 | 수용량 (T/h): | 0.5-280 |
| 모터 힘 (kw): | 5.5-500 | 무게 (t): | 0.5-32.4 |
| 강조하다: | 260Tph 망치 돌 파쇄기 Machine,3Tph 망치 돌 파쇄기 Machine,260Tph 이차적 조 크러셔 |
||

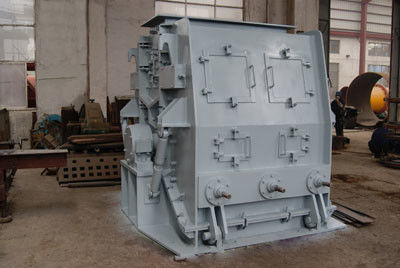

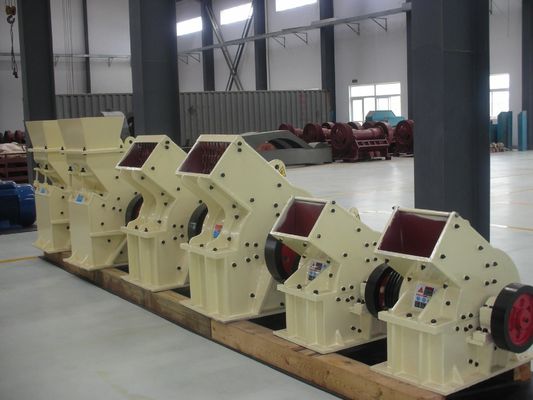

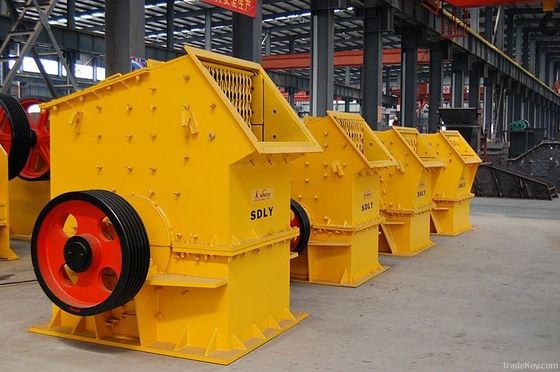

3-260 tph hammer crusher Secondary and fine crushing equipment
PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.
Specification of hammer crusher
| Model | Work rotor diameter / length(mm) | Rotor Speed (r/min) | Inlet Size (mm) | Max. feeding size(mm) | Discharge size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Dimensions (mm) |
| PC-41 | Ф400/175 | 1000 | 145×270 | 50 | 3 | 0.5 | 5.5 | 0.5 | 812×1056×1315 |
| PC-44 | Ф400/400 | 1500 | 145×450 | 100 | 10 | 5~8 | 7.5 | 0.9 | 744×942×878 |
| PC-64 | Ф600/400 | 1000 | 295×450 | 100 | 15 | 10~12 | 18.5 | 1.03 | 1054×972×1117 |
| PC-66 | Ф600/600 | 1000 | 295×570 | 100 | 10 | 12~18 | 45 | 2.14 | 1315×840×1501 |
| PC-86 | Ф800/600 | 1000 | 350×570 | 200 | 10 | 20-25 | 55 | 2.45 | 1515×2586×1040 |
| PC-88 | Ф800/800 | 1000 | 350×850 | 200 | 15 | 35-45 | 55 | 3.05 | 1515×2831×1040 |
| PC-108 | Ф1000/800 | 1000 | 580×850 | 200 | 13 | 25-40 | 110 | 6.5 | 3206×2210×1515 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 15 | 40-60 | 132 | 7.59 | 3514×2230×1516 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 10 | 30-50 | 160 | 7.59 | 3514×2230×1518 |
| PC-1010 | Ф1000/1000 | 1000 | 580×1060 | 200 | 8 | 25-35 | 185 | 7.59 | 3514×2230×1518 |
| PC-1212 | Ф1250/1250 | 750 | 650×1330 | 200 | 20 | 90-110 | 185 | 19.1 | 4475×3162×2250 |
| PC-1414 | Ф1400/1400 | 750 | 1050×1540 | 250 | 20 | 120-170 | 280 | 17.2 | 2790×2800×2310 |
| PC-1618 | Ф1600/1800 | 590 | 1200×1740 | 350 | 20 | 220-280 | 500 | 32.4 | 6256×3620×2700 |
Note:
1. This equipment can control the Max. Value of the discharging particle size with screen plate.
2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity
