제품 상세 정보:
결제 및 배송 조건:
|
| helical Gear: | Rotary kiln ring gear and ball mill helical gear | Diameter: | Min 100 mm to16000 mm Gear |
|---|---|---|---|
| Weight: | Max 120 MT single piece | Standards/Certificates: | UNI EN ISO, AWS , ASTM ,ASME , DIN |
| ball mill helical gear: | applied in the cement and minerals industries | Gear Cutting Machines: | 16m CNC Hobbing Machine |
| Port: | Qingdao China | Material: | Steel |
Heat Treatment Process Cast Steel Ball Mill Large Gear Customized For Mining
Product Introduction
Girth Gears offered find extensive application in different industry sectors including in sponge iron plants, steel & cement industry, mining industry, wind mills as well as in other industry sectors. These are made available in module range of 10 Module to 70 Module and in minimum diameters of 100 mm to 15000 mm. Further, these comprise maximum weight of 70 MT single pieces. Here the range of hardened & ground gear boxes/gears comprise Worm gear boxes, Helical / Double helical gears/gearboxes.
Module Range: 10 Module to 70 Module.
Diameter : Min 100 mm to16000 mm.
Weight : Max 120 MT single piece.
Hardened & Ground Gear Boxes/Gears:
Product Parameters
| Specification | Machining Scope |
| Size | OD Max 16m |
| One Piece of Gear: OD Max 13m | |
| Assemble Gear: According to drawings | |
| Hobbing Modulus | 10-60 |
| Milling Modulus | Up to 120 |
| Spiral Modulus | 1-15 |
| Accuracy Grade | Milling: 6 grade |
| Hobbing: 8 grade | |
| Material | Alloy steel: 42CrMo4, 34CrNiMo6 etc. |
| Carbon steel: C45E, 1030 | |
| Carburizing steel | |
| Quenched and tempered steel | |
| Heat treatment | Quenching&Tempering, Surface Quenching |

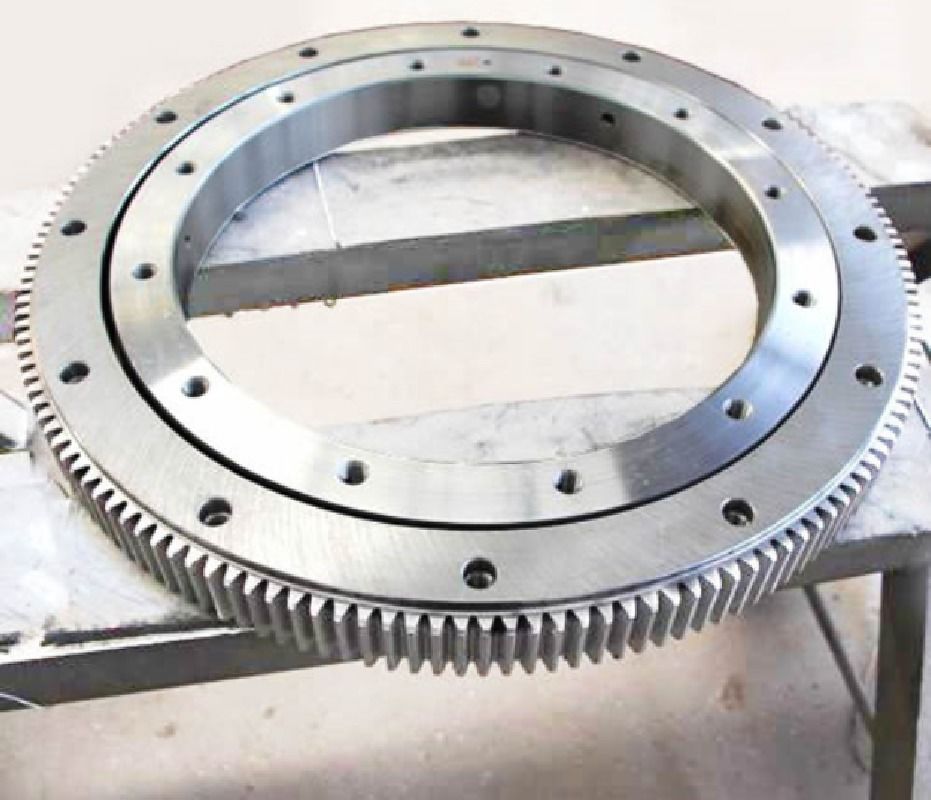

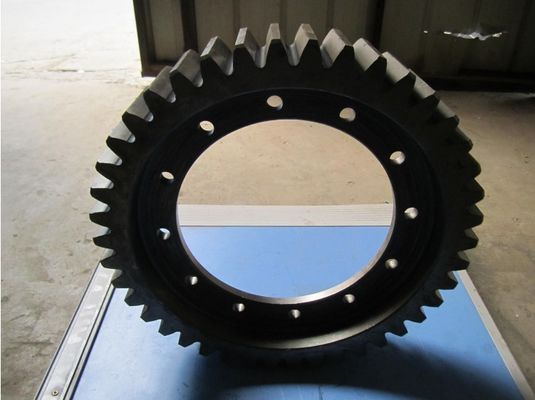

Product Display
