| 이름: | 전기 윈치 | 유형: | 침몰하는 윈치 |
|---|---|---|---|
| 브레이크 형식: | 전자 브레이크 장치 | 상태: | 새로운 |
| 모터 파워: | 7.5kW | 분류: | 호이 스팅 머신 전달 |
| 보증: | 12 개월 | 포트: | Qingdao 중국 |
Hydraulic Explosion-Proof Winch For Underground Mine Explosion-Proof Hoist
Product Technical Features:
1. Excellent explosion-proof performance;
2. Stable stepless speed regulation and low-speed operation performance;
3. Significant energy savings: Due to its closed-loop hydraulic transmission, the system is always in a dynamic braking state during lowering, converting gravitational potential energy into electrical energy that is fed back to the power grid. This reduces heat generation in the hydraulic system and conserves electricity, resulting in significant energy savings. Compared to hydraulic winches with low-speed hydraulic motors, high-speed hydraulic motor-driven winches offer higher transmission efficiency and greater energy savings.
4. Flexible technical parameter variation, optimal matching, and wide selection options: The reducer speed ratio can be optimally selected based on load and speed, ensuring optimal matching between the hydraulic pump and motor parameters. The variable pump-variable motor speed regulation system (unavailable with low-speed hydraulic motors) enables both high-speed operation under light loads and low-speed operation under heavy loads, fully utilizing the equipment's capabilities. Compared with low-speed hydraulic motor solutions, pulling force or speed can be increased at the same power; while at the same maximum pulling force and maximum speed, installed power can be reduced, saving electricity.
5. Compact structure and small size, saving chamber capital construction costs: Due to the direct connection between the planetary gear reducer and the main shaft, and the high-speed hydraulic motor and the planetary gear reducer, the main machine has a short axial dimension and a compact hydraulic system layout. The result is a compact structure and small size, saving chamber capital construction costs.
The working conditions and environment suitable for the product:
The host should be used in an environment with a temperature range of 5 ℃ to 40 ℃, and the electronic control system should be used in an environment with an altitude not exceeding 1500 meters (special orders can be placed above 1500 meters) and a relative humidity of not more than 95% (25 ℃) in the surrounding air. It must be able to prevent water and liquids from entering the interior of the electrical appliance and be used in an environment without severe vibration or corrosive gases. In addition, other conditions specified in the user manual of the individual equipment manufacturer should also be met.
| Hydraulic explosion-proof winch (hoist) product series technical parameters | |||||||||||||
| product model | reel | Maximum lifting height (rope maximum diameter) | wirerope | Maximum lifting speed | Main motor power | Maximum working pressure of main oil circuit | Number of hydraulic motors | ||||||
| quantity | diameter | wide | No.1 | No.2 | No.3 | Maximum static tension | Maximum static tension difference | maximum diameter | |||||
| mm | m | KN | KN | mm | m/s | KW | MPa | per | |||||
| JKYB－3×2.2XP | 1 | 3000 | 2200 | 471 | 981 | 1539 | 120 | 120 | 36 | 4.5 | ≤800 | 32 | ≤6 |
| JKYB－3×2.5XP | 2500 | 546 | 1131 | 1767 | |||||||||
| 2JKYB－3×1.5XP | 2 | 3000 | 1500 | 298 | 630 | 1008 | 120 | 120 | 36 | 4.5 | ≤800 | ≤6 | |
| 2JKYB－3×1.8XP | 1800 | 372 | 780 | 1235 | |||||||||
| JKYB－2.5×2XP | 1 | 2500 | 2000 | 394 | 827 | 1300 | 90 | 90 | 32 | 4 | ≤400 | ≤4 | |
| JKYB－2.5×2.3XP | 2300 | 463 | 967 | 1513 | |||||||||
| JKYB－2.5×2.5XP | 2500 | 510 | 1060 | 1593 | |||||||||
| 2JKYB－2.5×1.2XP | 2 | 2500 | 1200 | 209 | 453 | 734 | 90 | 90 | 32 | 4 | ≤400 | ≤4 | |
| 2JKYB－2.5×1.5XP | 1500 | 278 | 593 | 946 | |||||||||
| 2JKYB－2.5×2XP | 2000 | 394 | 827 | 1305 | |||||||||
| JKYB－2×1.5XP | 1 | 2000 | 1500 | 276 | 588 | 934 | 60 | 60 | 26 | 3.5 | ≤280 | ≤3 | |
| JKYB－2×1.8XP | 1800 | 343 | 724 | 1140 | |||||||||
| 2JKYB－2×1XP | 2 | 2000 | 1000 | 163 | 362 | 590 | 60 | 60 | 26 | 3.5 | ≤200 | ≤3 | |
| 2JKYB－2×1.25XP | 1250 | 220 | 475 | 762 | |||||||||
| JTYB－1.6×1.2XP | 1 | 1600 | 1200 | 176 | 389 | 627 | 45 | 45 | 24 | 3 | ≤200 | ≤2 | |
| JTYB－1.6×1.5XP | 1500 | 235 | 507 | 806 | |||||||||
| 2JTYB－1.6×0.9XP | 2 | 1600 | 900 | 118 | 272 | 450 | 45 | 345 | 24 | 3 | ≤160 | ≤2 | |
| 2JTYB－1.6×1.2XP | 1200 | 177 | 390 | 628 | |||||||||

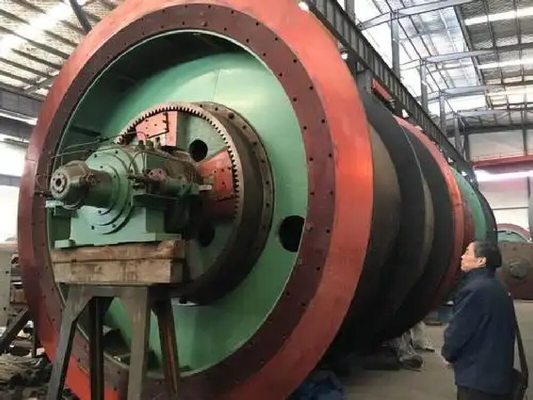

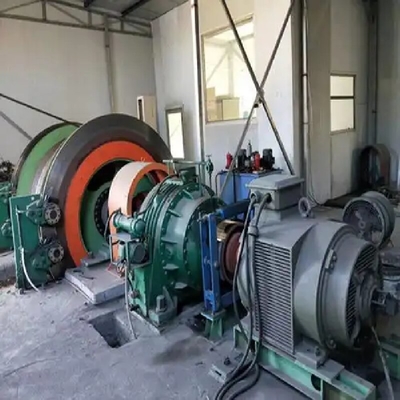

Product Display
