| 챔버 수: | 10-30 | 플레이트 사양(mm): | 1100*1100 |
|---|---|---|---|
| 면적(㎡): | 20-60 | 챔버 볼륨(m): | 0.35-1.05 |
| 설치 전력(KM): | 16.5 | 순중량(t): | 12-19 |
| 보증: | 12 개월 | 상태: | 새로운 |
| 포트: | Qingdao 중국 |
Intelligent Walking Filter Press With Automatic Filter Cloth Correction System
Product Introduction
Widely used in solid-liquid separation operations for materials such as nickel concentrate, zinc oxide leachate, starch, sludge, etc. Its core structure includes a horizontally stacked filter plate group, a hydraulic system, and an automatic circulating filter cloth. It adopts high-pressure extrusion and airflow dehydration technology, and the moisture content of the filter cake can be as low as 10% -15%
There are six processes in the working mode: filtration: pumping material suspension; One time diaphragm extrusion.The short program control mode has four processes: filtration, diaphragm compression, filter cake drying, filter cake discharge, and filter cloth washing.

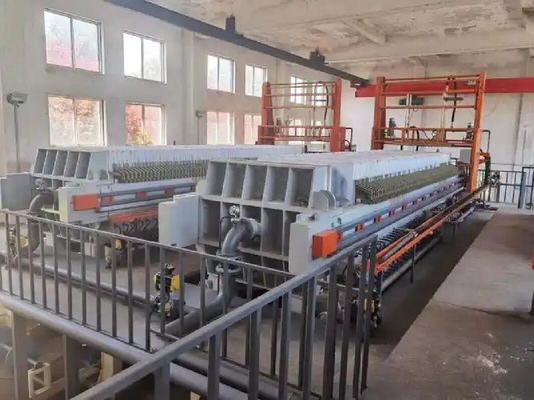

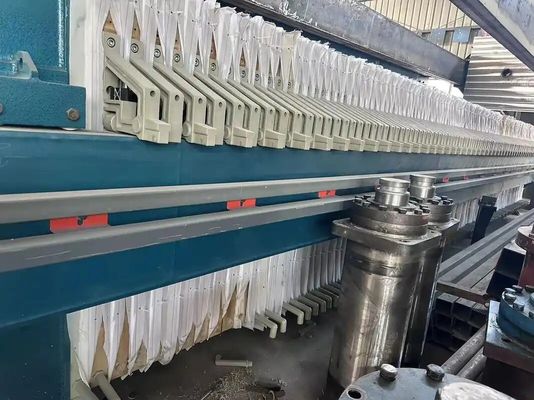

Product Display
Product Parameters
| Models | Number of Chambers |
Plate Specifications(mm) | Area(m) | Chamber Volume (m) | Installed Power (KM) | Dimensions(mm) | Net Weight(t) | ||
| L | W | H | |||||||
| XZA-1110 | 10 | 1100*1100 | 20 | 0.35 | 16.5 | 5933 | 2000 | 2620 | 12 |
| XZA-1116 | 16 | 1100*1100 | 32 | 0.56 | 16.5 | 6797 | 2000 | 2620 | 16 |
| XZA-1120 | 20 | 1100*1100 | 40 | 0.7 | 16.5 | 7373 | 2000 | 2620 | 17 |
| XZA-1126 | 26 | 1100*1100 | 52 | 0.901 | 16.5 | 8237 | 2000 | 2620 | 18 |
| XZA-1130 | 30 | 1100*1100 | 60 | 1.05 | 16.5 | 8813 | 2000 | 2620 | 19 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
