제품 상세 정보:
결제 및 배송 조건:
|
| 챔버 수: | 20-30 | 플레이트 사양(mm): | 1500*1500 |
|---|---|---|---|
| 면적(㎡): | 72.8-109.2 | 챔버 용량(m³): | 1.274-1.911 |
| 설치된 전원(KW): | 17.2 | 보증: | 12 개월 |
| 상태: | 새로운 | 포트: | Qingdao 중국 |
| 강조하다: | fixed oil cylinder filter cloth,walking filter press automatic,cement plant filter press |
||

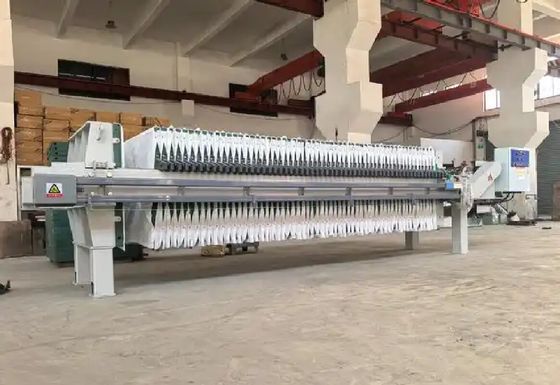

Fixed Oil Cylinder Filter Cloth Walking Filter Press Automatic Correction
Product Introduction
The feeding and unloading time is short with high production efficiency.The cycle of each batch is less than 1 hour.Automatic control can adjust the data at any time according to different sludge and feeding pressure.The unloading mud output is continuous and stable.
The mechanical forced lifting and reciprocating motion of the filter cloth ensures that the filter cake is completely removed at one time,without manual assistance in mud unloading.
All filter cloths can be cleaned quickly at one time,with high efficiency in cleaning filter cloths.
Product Display
Product Parameters
| Models | Number of Chambers |
Plate Specifications(mm) | Area(m²) | Chamber Volume(m³) | Installed Power(KW) | Dimensions(mm) | Net Weight(t) | ||
| L | W | H | |||||||
| XZA-1520 | 20 | 1500X1500 | 72.8 | 1.274 | 17.2 | 7373 | 2600 | 2650 | 30 |
| XZA-1526 | 26 | 1500X1500 | 94.64 | 1.656 | 17.2 | 8237 | 2600 | 2650 | 32 |
| XZA-1530 | 30 | 1500X1500 | 109.2 | 1.911 | 17.2 | 8813 | 2600 | 2650 | 34 |
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
