제품 상세 정보:
결제 및 배송 조건:
|
| 상태: | 새로운 | 보증: | 12개월 |
|---|---|---|---|
| 지름: | 800mm | 회전 속도: | 1200rad/분 |
| 포트: | Qingdao 중국 | 분류: | 광석 드레싱 장비 |
| 용량: | 98L |

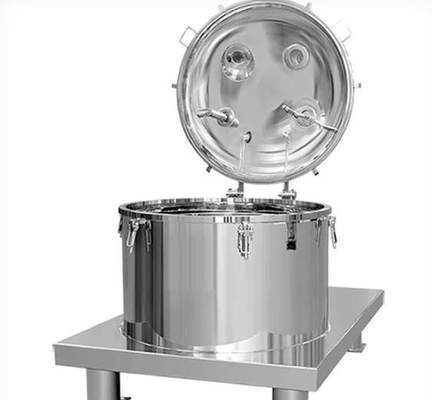

High-Efficiency SD Type Hanging Bag Centrifuge
The SD-type hanging bag centrifuge is a filtration centrifuge that uses the centrifugal force generated by the high-speed rotation of the drum to achieve solid-liquid separation. Its hanging bag unloading structure significantly reduces labor intensity and improves production efficiency.
Primary Applications
Suitable for solid-liquid separation operations in chemical, pharmaceutical, food, and other industries. Capable of separating suspensions containing loose solid particles, and ideal for applications requiring frequent filter bag cleaning.
Product Parameters of Ore Dressing Equipment
| Rotating Drum | |||||||||
| Model | Diameter(mm) | Heigh(mm) | Rotation Speed(rad/min) | Volume(L) | Material Weight(kg) | Centrifugal Factor(w2/g) | Power(kw) | Total Weight(kg) | DimensionL*B*H(mm) |
| SD800 | 800 | 360 | 1200 | 98 | 120 | 860 | 7.5 | 1500 | 1740*1380*1000 |
| SD1000 | 1000 | 400 | 1000 | 140 | 150 | 640 | 11 | 2000 | 1950*1560*1050 |
| SD1200 | 1200 | 450 | 800 | 230 | 240 | 600 | 15 | 3000 | 2370*1600*1000 |
| SD1500 | 1500 | 450 | 600 | 360 | 400 | 500 | 18.5 | 4800 | 2640*1850*1100 |

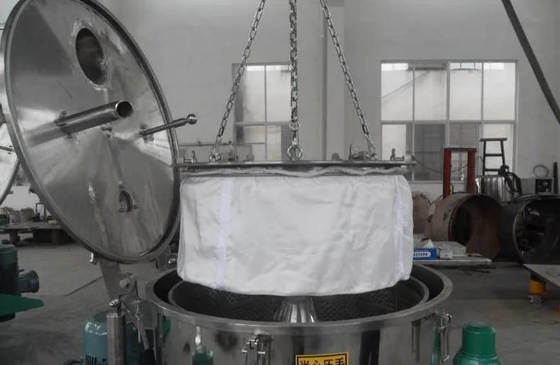

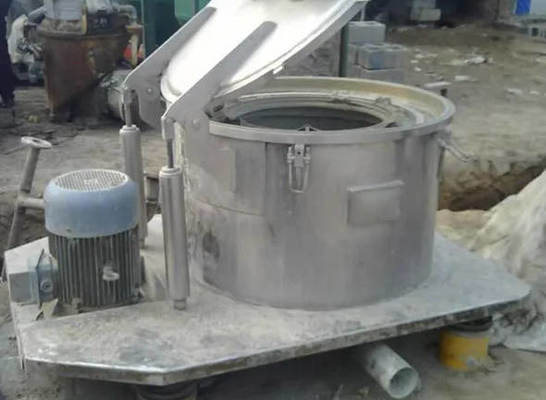

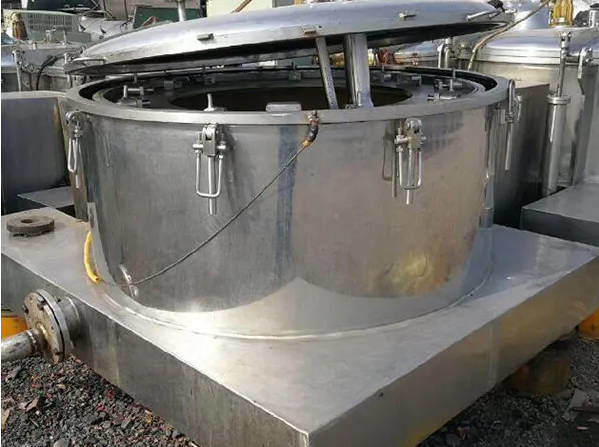

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
