제품 상세 정보:
결제 및 배송 조건:
|
| 상태: | 새로운 | 보증: | 12개월 |
|---|---|---|---|
| 필터링 영역: | 1㎡ | 최대 흐름: | 70T/h |
| 포트: | Qingdao 중국 | 분류: | 광석 드레싱 장비 |
| 구경: | DN50mm |
High Flow Easy To Operate Multi Bag Filters
Multi-bag filter is a pipeline treatment device designed to separate suspended particulate impurities from liquids and gases.
Applications
Chemical, pharmaceutical, food, environmental protection, and other industries.
Features
Multiple filter bags arranged in parallel, achieving uniform fluid distribution through top-entry liquid feed. Filtration precision ranges from 0.5 to 1200μm, with a maximum single-unit processing capacity of 1080m³/h.
Product Parameters of Ore Dressing Equipment
Filter cloth features
| Model | Bag QTY | Filtering Area(㎡) | Max Flow(t/h) | Caliber(mm) | Working pressure(MPa) | Cylinder diameter(Ф) | Total Height(mm) | Housing Height(mm) | Center Distance of Foundation Bolts(mm) |
| DL-2P2S | 2 | 1 | 70 | DN50 | 0.5 | 456 | 1572 | 1144 | 616 |
| DL-3P2S | 3 | 1.5 | 105 | DN80 | 508 | 1592 | 1190 | 668 | |
| DL-4P2S | 4 | 2 | 140 | DN100 | 558 | 1632 | 1244 | 718 | |
| DL-5P2S | 5 | 2.5 | 175 | DN150 | 608 | 1788 | 1254 | 768 | |
| DL-6P2S | 6 | 3 | 210 | DN150 | 658 | 1854 | 1300 | 818 | |
| DL-7P2S | 7 | 3.5 | 245 | DN150 | 710 | 1875 | 1340 | 870 | |
| DL-8P2S | 8 | 4 | 280 | DN150 | 760 | 1922 | 1404 | 920 | |
| DL-10P2S | 10 | 5 | 350 | DN200 | 910 | 2004 | 1430 | 1070 | |
| DL-12P2S | 12 | 6 | 420 | DN200 | 962 | 2064 | 1460 | 1132 | |
| DL-14P2S | 14 | 7 | 490 | DN200 | 1012 | 2124 | 1490 | 1212 | |
| DL-16P2S | 16 | 8 | 560 | DN250 | 1112 | 2146 | 1512 | 1312 | |
| DL-18P2S | 18 | 9 | 630 | DN250 | 1162 | 2225 | 1595 | 1360 | |
| DL-20P2S | 20 | 10 | 700 | DN250 | 1212 | 2280 | 1640 | 1412 | |
| DL-22P2S | 22 | 11 | 770 | DN250 | 1366 | 2320 | 1694 | 1516 | |
| DL-24P2S | 24 | 12 | 840 | DN300 | 1416 | 2358 | 1748 | 1616 |

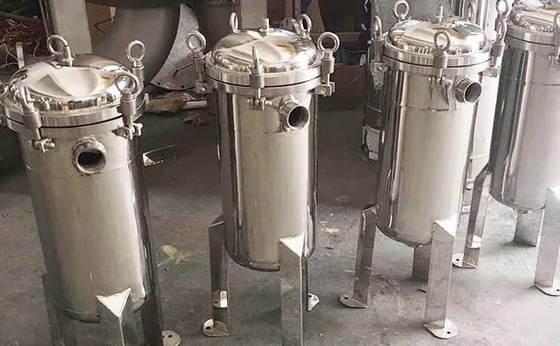

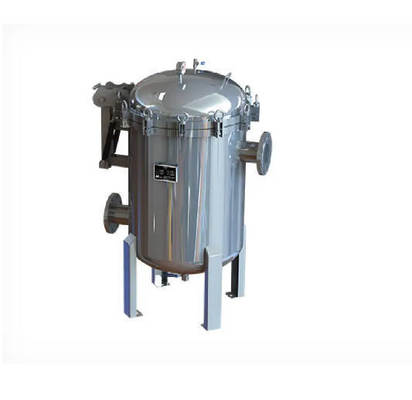

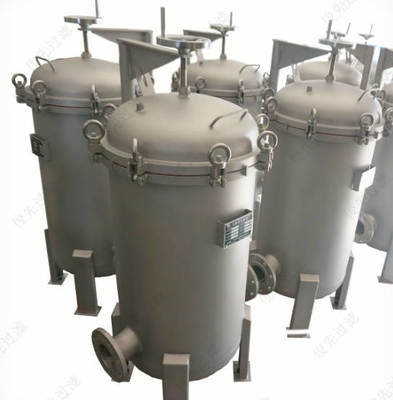

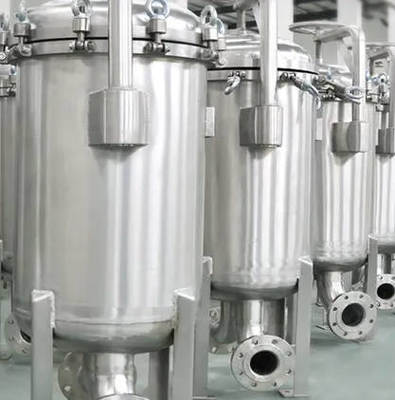

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
