| 모델: | 볼프레스 머신 | 주로 사용됩니다: | 석탄, 광업, 금속, 불탄소 |
|---|---|---|---|
| 상태: | 새로운 | 유형: | 야금학 기계 |
| 최대 선형 비전압: | 8 Ｔ | 힘: | 55kW |
| 산출: | 2.2-3.5 Ｔ | 무게: | 13 Ｔ |
| 보증: | 12개월 | 포트: | Qingdao 중국 |
High-Pressure Molding Machine With Flexible Production Process
Briquette machine is a key suppressing machine in the pellet technology complete equipment developed and designed on the principle of extrusion molding for powder material. Our company received the national patent of invention certificate of large Briquette machine with patent No. ZL2007.1.0163951.4. Recently, the first GY2412 Briquette machine has been successfully manufactured in our factory with diameter of press roll 2.4 meter and width 1.2 meter. The capacity of the Briquette machine can reach 50-100t/h according to different material. Our Briquette machine is the largest high-pressure ball press machine of highest pressure and largest capacity featuring in advanced product design theory, rational structure, affordable forcing feeding, adjustable pressure, feeding intellectualization, ball production automation with inlaid rolling skin easy to exchange and maintain.
Product advantage:
1. First high-pressure ball press successfully developed in 1988
2. Full product range with roller diameter of 520-1200mm
3. Forced pre-press designed output with high beta ratio of 11T/cm
4. 6000h ultrawear-resistant material roller material made of special bearing steel
5. Completely-sealed gearbox is used for the retarder with low noise and without oil leakage
6. Ball forming lab to provide professional ball forming tes
Product Parameter of Metallurgy Machine
| model | Roller diameter (mm) | Roller width (mm) | Total pressure (t) | Maximum linear specific voltage (t) | Power(kw) | Output (t) | weight(t) | boundary dimension(mm) | ||
| L | W | H | ||||||||
| GY520-150 | 520 | 196 | 150 | 8 | 55 | 2.2-3.5 | 13 | 4087 | 2882 | 2709 |
| GY650-180 | 650 | 220 | 180 | 8 | 90 | 4-6.5 | 19.1 | 4576 | 3365 | 3003 |
| GY650-220 | 650 | 200 | 220 | 11 | 110 | 4-6.5 | 19.2 | 4576 | 3365 | 3003 |
| GY750-230 | 750 | 280 | 230 | 8 | 160 | 6-8.5 | 30.2 | 5792 | 2963 | 3174 |
| GY750-270 | 750 | 328 | 270 | 8 | 185 | 7-10 | 35.2 | 5792 | 2963 | 3174 |
| GY750-300 | 750 | 280 | 300 | 11 | 185 | 6-8.5 | 34 | 5792 | 2963 | 3174 |
| GY750-350 | 750 | 328 | 350 | 11 | 220 | 7-10 | 38.5 | 5792 | 2963 | 3174 |
| GY1000-350 | 1000 | 440 | 350 | 8 | 250 | 10-15 | 50.8 | 6123 | 4280 | 3603 |
| GY1000-500 | 1000 | 440 | 500 | 11 | 350 | 10-15 | 65 | 6523 | 4480 | 4209 |
| GY1200-800 | 1200 | 900 | 720 | 8 | 280Kw×2 | 40 | 110 | 8830 | 5111 | 4200 |

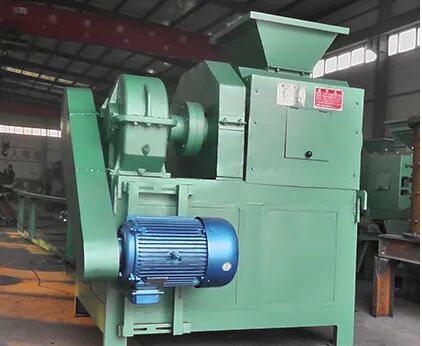

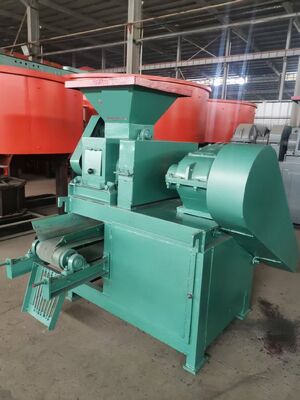

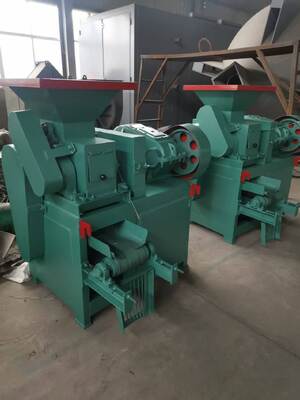

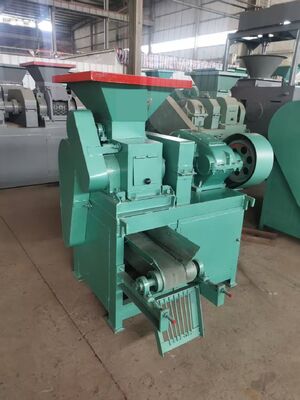

Product Display of Metallurgy Machine
Metallurgy Machine
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
