| 이름: | 파쇄 기계 | 모델: | 600형 |
|---|---|---|---|
| 색상: | 맞춤형 | 직경 로터리: | 255mm |
| 커터 샤프트 속도 회전커터 샤프트 속도 회전커터 샤프트 속도 회전cu 회전: | 90rpm | R고정칼날 수: | 4pcs |
| 유형: | 파쇄기 | 분류: | 야금학 기계 |
High Efficiency Shredder With A Wide Range Of Applications
Shredder is an industrial device used for coarse crushing. It breaks large materials (such as metal, plastic, wood, and waste) into smaller pieces through shearing, tearing, and compression to reduce volume and facilitate transportation and recycling.
Working Principle:
After the material enters the shredder, it is crushed by the combined action of tearing, compression, and shearing through the rotation of the cutter shaft (low speed, high torque) and the cooperation of the fixed blades. The smaller pieces of material are then discharged through a screen.
Product advantages
1.High-efficiency processing capacity It can quickly crush various materials (such as plastics, metals, and wood) in a short time, greatly improving work efficiency and saving manpower and time costs.
2.Wide applicability It can handle a variety of materials (including plastics, rubber, waste tires, wood, etc.), adapting to the waste recycling and resource reuse needs of different industries.
3.Environmentally friendly and low-noise design: Low noise and vibration during operation, some models are equipped with dust removal systems to effectively reduce dust pollution and meet modern environmental protection standards.
Product Parameter of Metallurgy Machine
| Shredder Model | SX-B 600 | SX-B 800 | SX-B 1000 | SX-B 1200 | SX-B 1600 |
| Diameter Rotary | 255mm | 255mm | 300mm | 300mm | 300mm |
| Rotate the number of knives | 60pcs | 78pcs | 96pcs | 114pcs | 1501pcs |
| Rotate the cutter shaft speed | 90rpm | 90rpm | 90rpm | 90rpm | 90rpm |
| Number of fixed knives | 4pcs | 4pcs | 4pcs | 8pcs | 8pcs |
| Maximum yield | 650kg/h | 900kg/h | 1000kg/h | 1200kg/h | 1500kg/h |
| Feeding caliber | 700mm*800mm | 880mm*1100mm | 1070mm*1150mm | 1280mm*1300mm | 1650mm*2000mm |
| Power of main motor | 18.5KW*2 | 22KW*2 | 30KW*2 | 37KW*2 | 45KW*2 |
| Host weight | 4000kg | 5400kg | 6200kg | 8000kg | 9500kg |

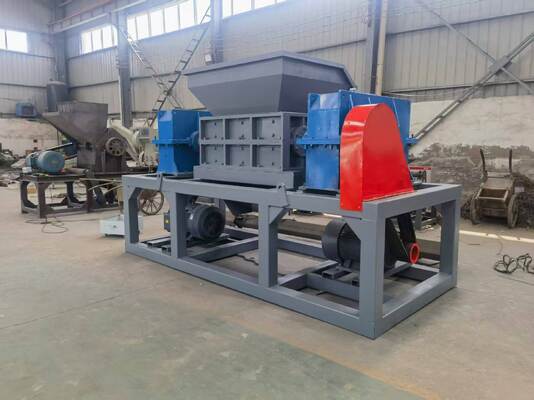

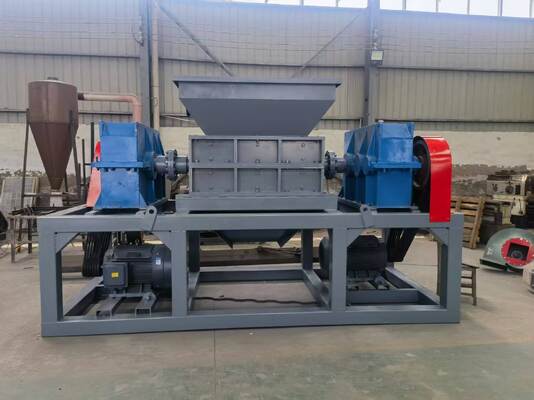

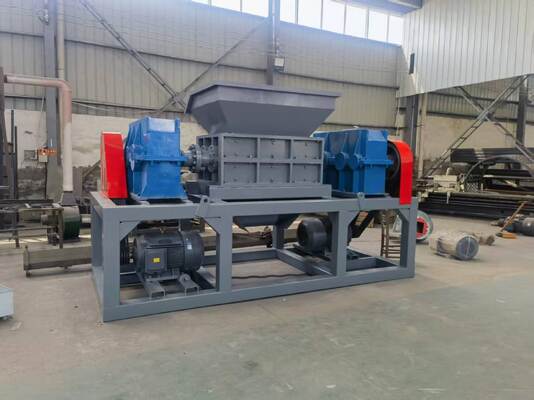

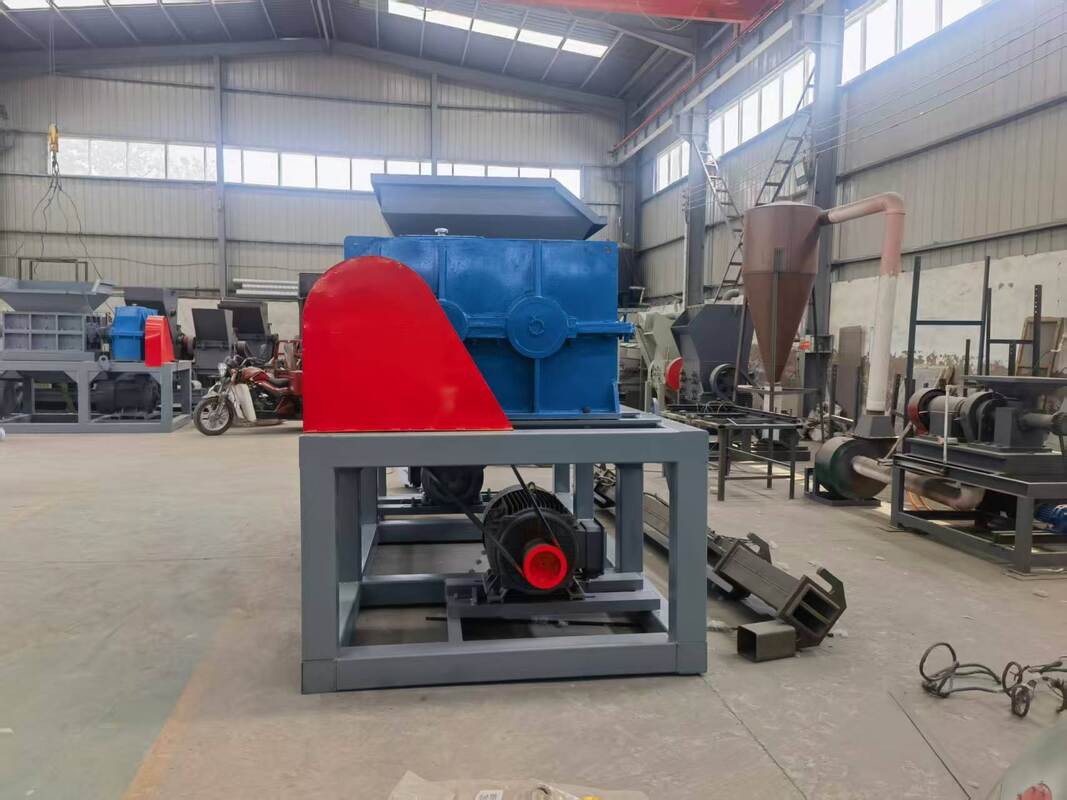

Product Display of Metallurgy Machine
Metallurgy Machine
